ThunderMux

NGN MSAN SUPPORT PRODUCT
Eight port ATM / Ethernet <=> Ethernet / 1000BaseX / GPON  FPGA SoC


ThunderMux™  provides system designers with an extreme flexible platform for value added services such as “ Triple (Quadruple) Play ”, with its extensive capabilities for Ethernet packet handling, manipulating, considering QoS as well.

ThunderMux™ with its state-of-the art FPGA SoC solution provides protocol stack support for current and evolving network protocols, using low cost  Xilinx™’s Spartan6™ family FPGAs and low cost &power, external SDRAM.

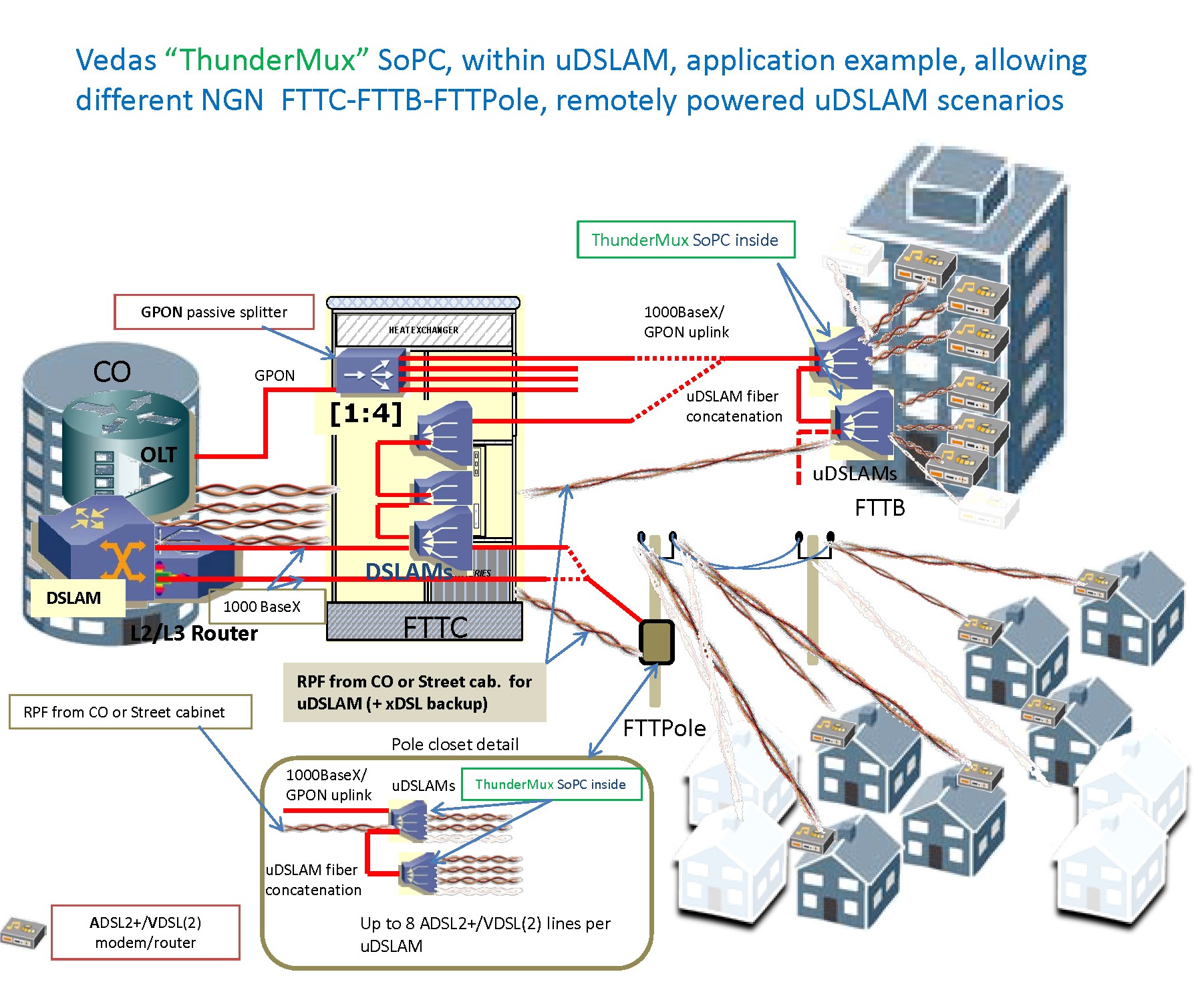

Combined with third party ADSL(2,2+), VDSL(2) solutions, high performance, low cost, extremely low power, remotely powered, customer specific line card system solutions are now possible.

Applications Small IP-DSLAM line cards ATM, Ethernet <=>Ethernet, GPON Gateways Ethernet packet handler Battery powered Telecom testers Features ATM AAL5 SAR termination for Ethernet Metro uplinks Non-blocking, Telecom dedicated ethernet switch included Advanced QoS classification, shaping and prioritization Non-blocking, full featured ,ADSL2+, VDSL(2) capability line card Per port,VPC,Ethernet Type, VLAN, QinQ, packet handling and QoS classification Downstream, upstream MAC, black-white list filtering, Ethernet type, VLAN replacement-filtering, stacked VLAN filtering, programmable outer tag Per port, VPC, VLAN, QinQ and Ethernet type, flexible tag inserting-striping, queuing, shaping in 1kbit/s step and on the wire speed Max. Up / Downstream throughput, toward CPEs, of 800Mbps, considering 64 Bytes packets and real time packet classification-manipulation PPPoE (Intermediate agent), DHCP option 82 support, internally processed or routed to external uP for inspection-editing Flexible virtual MAC ( VMAC ), MAC in MAC support according to customer format-demands IGMP snooping V1, V2 Up to 4 ThunderMux uplink fiber concatenation, whithin uDSLAM possible, allowing efficient fiber use Up to 8 : VPC, Ether_types, VLAN inner and outer tags supported per port Complete hardware solution allowing low end uC application, reducing a total power consumption and BOM Custom version and adaptation to customer needs possible

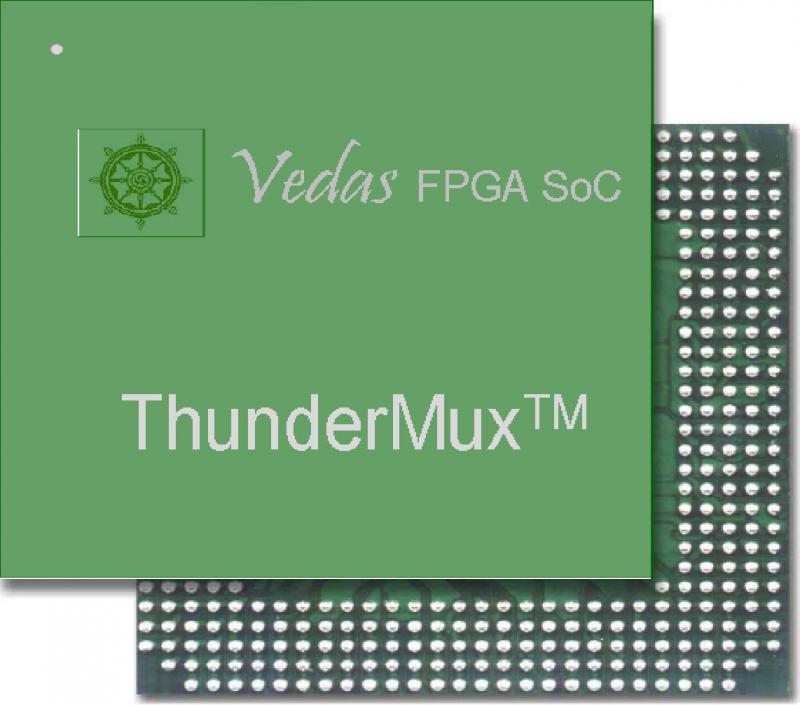

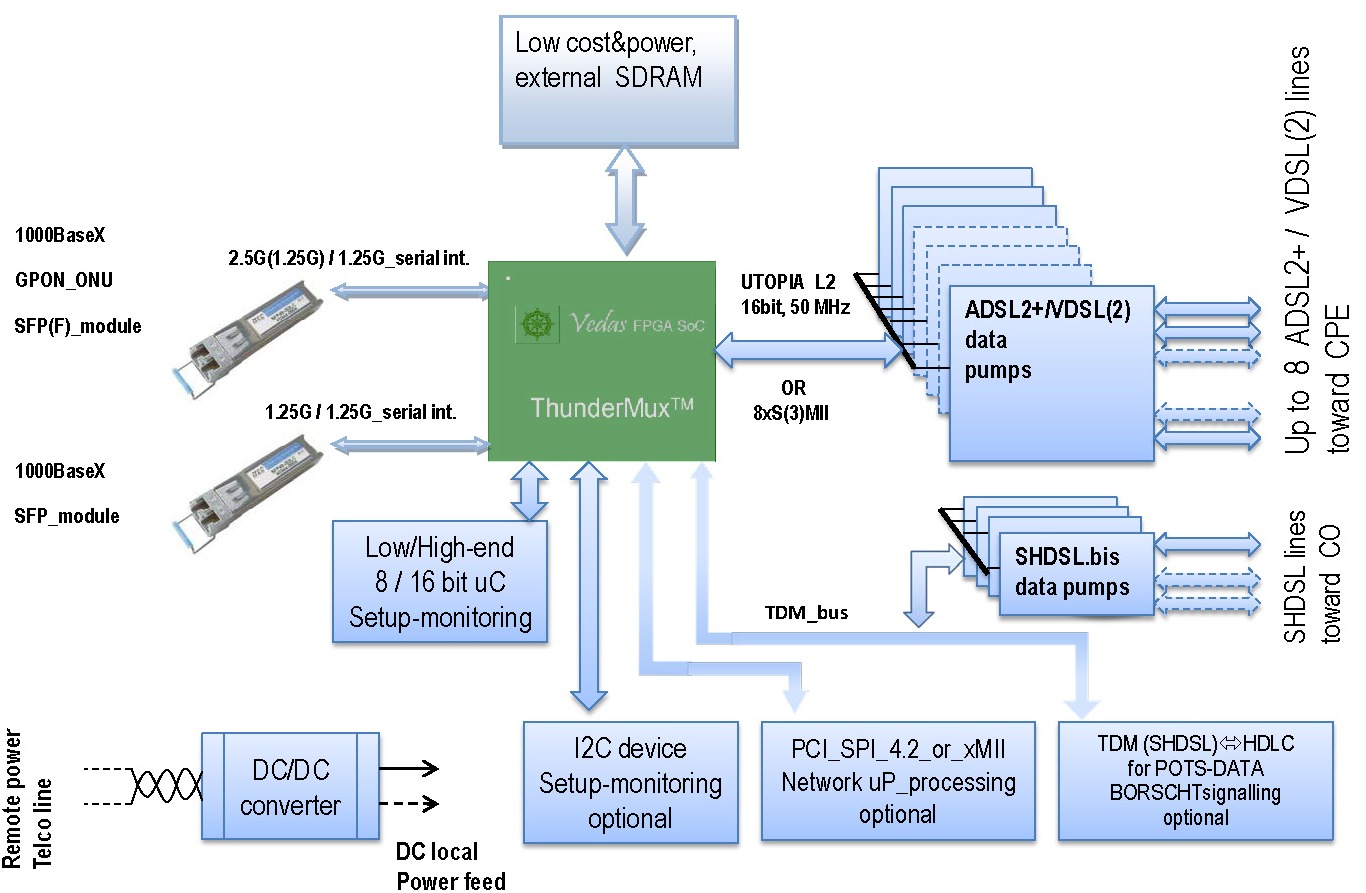

Interfaces 8xS(3)MII, 100Mbps, full duplex, line side interface 16 port UTOPIA Level 2, 16 bit, 50 MHz line side interface 2x1000Base-X ( 100Base FX, GPON, optional) uplink interface flexible TDM with HDLC channel  interface and BORSCHT function-optional High speed, 8 / 16 bit, generic uC interface for setup and system monitoring, I2C optional Optional PCIE, SPI 4.2 or xMII interface toward external Network uP for packet proccessing   Supported Standards and Protocols IEEE 802.3, 802.1P, 802.1Q, 802.1ad, ATM-UNI, AAL5 ( RFC2684-VCmux, LLC enc.), Utopia L2 (af-phy-0039.000) OIF-SPI4-02.1, ENG 46158, G984.3-4 GPON Physical Characteristics Operational at Extended TemperatureRange: -40C to 85C Power Supply: 1.2 V core, 3.3V / 2.5V I/O and memory Power consumption : < 2.5 W , including external SDRAM Placed on 484 pin BGA package(19x19 mm) Other packages and/or pin-out adapted to customer needs possible

Ordering information
ThunderMux-A
ThunderMux-G

Description
Eight port ATM, Ethernet to Ethernet, packet processor - option A
Eight port ATM, Ethernet to Ethernet, GPON packet processor - option G

Device-package
Xilinx-Spartan6™-CSG 484 or other by request

Published by Vedas d.o.o. Stegne21C, 1000 Ljubljana SLOVENIA-EU Tel.: +386 1 51 11 111 Fax: +386 1 42 22 611 http://www.vedas-socsolutions.com © 2011 Vedas d.o.o.  All rights reserved. Trademarks™ Vedas and ThunderMux are trademarks of  Vedas d.o.o. All other trademarks or registered trademarks mentioned herein are the property of their respective holders. Warnings Vedas d.o.o. retains the right to make changes to its products or specifications to improve performance or reliability. All information in this document, including descriptions of features, functions, performance, technical specifications and availability, is subject to change without notice at any time. While the information furnished herein is held to be accurate and reliable, no responsibility will be assumed by Vedas for its use. We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein. Vedas products are not intended for use in life support appliances, devices, or systems. Use in such applications are expressly prohibited.
