WireMux-8

NGBAN DSLAM SUPPORT PRODUCT
Eight channel  Ethernet<=>ATM  FPGA SoC


WireMux™8 is the comprehensive, complete hardware, eight channel, high end, low price, extremely low power solution, designed to support all flavors of ADSL broadband aggregation, up to ADSL2++, on IP-DSLAM line cards.

WireMux™8 provides system designers with an extreme flexible platform for value added services such as  “Triple (Quadruple) Play”, with its extensive capabilities for Ethernet packet handling, manipulating, considering QoS as well.

WireMux™8 with its state-of-the art FPGA SoC
solution provides protocol stack support for current and evolving network protocols, using low cost Xilinx™’s Spartan6™ family FPGAs and low cost external SRAM.

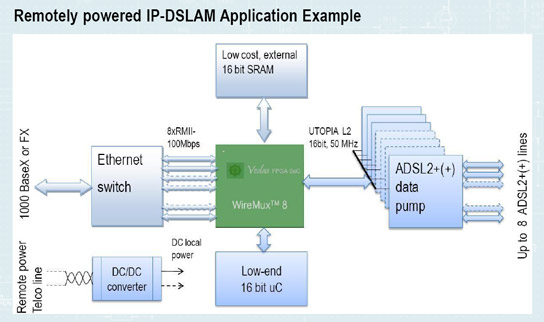

Combined with third party ADSL(2,2+,2++) solutions, high performance, low cost, extremely low power, remotely powered, customer specific line card system solutions are now possible.


Applications
  • Small IP-DSLAM line cards
  • ATM<=>Ethernet Gateways
  • Ethernet packet handler

Features
  • ATM AAL5 SAR termination for Ethernet Metro uplinks
  • Advanced QoS classification, shapingand prioritization
  • Non-blocking, full featured ,ADSL2+(+) capability line card
  • Per port, Ethernet Type, VLAN, stacked-VLAN, VPC, packet handling and QoS classification
  • Downstream, upstream MAC, black-white list filtering, Ethernet type, VLAN replacement-filtering, stacked VLAN filtering
  • Per port, VPC, VLAN, QinQ and Ethernet type, flexible tag inserting-striping, MAC in MAC support, queuing, shaping in 1kbit/s step and on the wire speed
  • Max. downstream throughput of 800 Mbps and upstream of  400 Mbps,considering 64 Bytes packets and real time packet classification-manipulation
  • Complete hardware solution allowing low end uC application, reducing a total power consumption and BOM
  • Custom version and adaptation to customer needs possible
 Interfaces
  • 8xRMII, 100Mbps, full duplex, system side interface
  • 16 port UTOPIA Level 2, 16 bit, 50 MHz line side interface
  • High speed, 16 bit, generic uC interface for setup and system monitoring

Supported Standards and Protocols
  • IEEE 802.3, 802.1P, 802.1Q, 802.1ad, ATM-UNI, AAL5(RFC2684-LLC enc.), Utopia L2    (af-phy-0039.000)

Physical Characteristics
  • Design tested at Extended Temperature Range: -40C to 85C
  • Power Supply: 1.2 V core, 3.3V I/O and memory
  • Power consumption: < 1.5W, including external SRAM

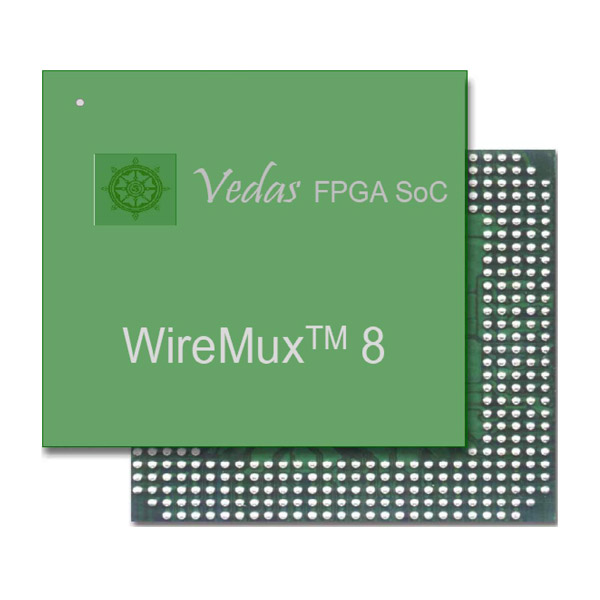

  • Placed on 484 pin BGA package(19x19 mm)
  • Other packages and/or pin-out adapted to customer needs possible




Ordering information
WireMux-8

Description
Eight channel ATM to Ethernet Bridge-processor

Device-package
Xilinx-Spartan6™-CSG 484 or other by request

Published by Vedas d.o.o.
Stegne21C, 1000 Ljubljana
SLOVENIA-EU
Tel.: +386 1 51 11 111
Fax: +386 1 42 22 611
http://www.vedas-socsolutions.com

© 2010-2011 Vedas d.o.o. All rights reserved.

Trademarks™
Vedas and WireMux-8 are trademarks of  Vedas d.o.o. All other trademarks or registered trademarks mentioned herein are the property of their respective holders.

Warnings
Vedas d.o.o. retains the right to make changes to its products or specifications to improve performance or reliability. All information in this document, including descriptions of features, functions, performance, technical specifications and availability, is subject to change without notice at any time. While the information furnished herein is held to be accurate and reliable, no responsibility will be assumed by Vedas for its use.

We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein.

Vedas products are not intended for use in life support appliances, devices, or systems. Use in such applications are expressly prohibited.
